Emacs AUCTeX and PDF Synchronization on Windows

In this technical note, we’d like to setup [GNU Emacs]([ G) and AUCTeX so that it can do both forward searches (using Emacs to control the PDF Viewer) and inverse searches (using the PDF Viewer to control Emacs). This work is based on William’s instructions, but with some additional modifications from Miguel Frasson that remove the dependency on sumatra-forward.el, as long you primarily use pdflatex as your LaTeX target. The technique uses the command line rather than DDE to interface with Sumatra PDF.

  • Unlike on the Mac, TeX tool support on Windows is quite a challenge. With the exception of Sumatra PDF, there are basically no PDF viewers that support source synchronization. Be sure to use the full installer, and not the portable apps version of Sumatra PDF.
  • To get PDF synchronization to work, you’ll need to set a few AUCTeX variables in Emacs (M-x customize-variable). The first is TeX-view-program-list, which is perhaps the most complicated. The Name should read as Sumatra PDF, and the Choice should be set to Command parts. Then, you will need to insert (INS) two Command parts:
  1. The first Command part has a value of "C:/Program Files (x86)/SumatraPDF/SumatraPDF.exe" -reuse-instance, adjusting accordingly for your actual path.
  2. The second part is a Predicate and command part with a Predicate of mode-io-correlate and a Command part of ␣-forward-search %b %n. The character ␣ is meant to represent a leading whitespace character.
  3. The third part is a Command part with ␣%o. Once again, don’t forget the leading whitespace character.

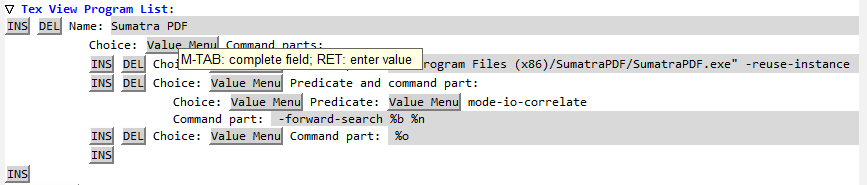

* Since the last step isn’t entirely obvious, the following screen capture should help you with this variable (click to enlarge). And if you’re curious about what %o, %n and so on do, then check the variable TeX-expand-list.

* Select Save for future sessions and then restart Emacs; otherwise the next step won’t work without knowing some Emacs tricks. For the remaining variables in this recipe, remember to Save for future sessions as well.
* The next variable is TeX-view-program-selection, where the Viewer for output-pdf should be set to Sumatra PDF.
* Similarly, find TeX-source-correlate-mode and set this to On. Finally, set TeX-source-correlate-method to synctex.
* You’ll probably want to setup Emacs with (server-start) ahead of time, so add this to your init.el. On Windows in particular, (server-start) is problematic and can fail by default with something like: error: The directory
